|According To The Customer Requirements:||According To The Customer Requirements||Specification:||According To The Customer Requirements|
|Color:||Clear,grey,green,blue,bronze||Quality Grade:||Construction Use, Furniture Use And So On|
|Type:||Float Glass||Technique:||Clear Glass,Tempered Glass,Tinted Glass|
|Insulating GlasS:||Argon Or Air||Product Name:||Price Insulated Low-e Glass|
Energy Saving Glass,
Insulated Glass Panels
Features tempered insulated glass
(1) Safety: a kind of safe glass and the fragment of which does no harm to people;
(2) High intensity: The strength is 3-5 times of ordinary annealed glass;
(3) Special logo and pattern can be printed on tempered glass;
(4) Outstanding performance in resisting thermal stress and wind-load;
(5) Heat stability: Tempered glass has good heat stability and can withstand the temperature difference is 3 times of ordinary glass and 300℃ temperature changes.

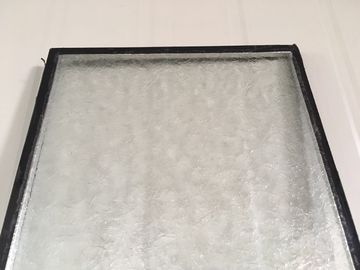

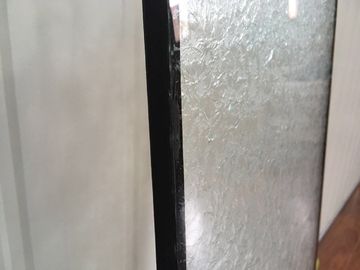

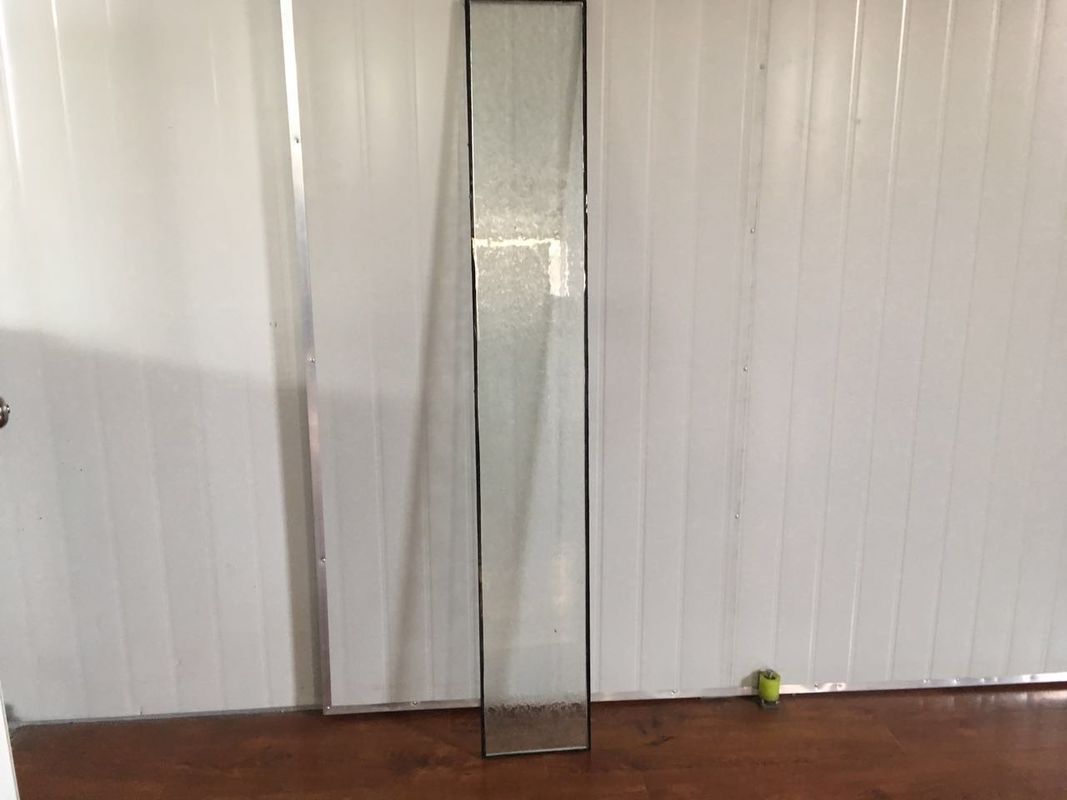

Low-e Insulated Building Glass
Normally there are two types for energy efficient glass. One is reflective glass, another is low-e glass.
Low-e glass is a kind of environmental green glass. Widely used as curtain walls, windows, etc.
We can produce according to your size.
1> Thermal performance: Lower U-value (heat conductivity) effect can be enhanced by filling Argon in the air spacer. The building, which used insulated glass, will take the effect of warm in winter and cold in summer. It save the energy fee about 20%-40%.
2> Optical Performance: Flexible to select various light transmittance & solar reflection rate as per the needs.
3> Sound Insulation: General IGU can reduce 30db, if IGU filling with Argon another 5db can be reduced.
4> Dew point resistance: Less than -65 centigrade, better than Chinese National Standard of -40centigrade for IGU dew point.
5> Sealing: Aluminum frame is formed at one time, but sealant & structural sealant or polysulfide sealant double sealing ensures a good sealing of IGU.
|1) Type||Low-E Glass, Insulating Glass, Coated Glass|
|2) Brand||Moshell Group|
|3) Thickness||5 + 6A + 5~15 + 15A + 15|
|4) Size||Minimum||300 * 500 mm|
|Maximum||2400 * 6000 mm|
|5) Color||Clear,Grey series,Blue Series and Blue Series etc|
|6) Type of Sheet Glass||Float glass, Coated glass,etc|
|7) Aluminum Strip Width||6 mm. 9 mm, 12 mm. 15 mm, etc|
|8) Insulating Gas||Argon or Air|
|9) Packing||(1) Paper or plastic film between two sheets|
|(2) Seaworthy wooden crates|
|(3) Strong iron belt for consolidation|
|10) Quality Standard||IGCC, IGMA, CCC, etc|
|11) Application||Facades and curtain walls, Skylights, Green House, etc|
